APA3024 High Power 72W/CH 3A Analog Ac Current Controller

Brand Name : OPT

Model Number : OPT-APA3024-2

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Product name : APA3024 High Power Analog Current Controller

Auto Sensing Of Light Rated Current : For 800mA - 3A light

Current : 6A

Output Power : 72W/CH

Standby Power Consumption : ≤4.7W

Operating Temperature : -5℃~50℃

Dimensions(L*W*H) : 136mm*270.5mm*104.5mm

Weight(kg) : 1.6kg

Contact Now

Machine Vision Controller APA3024 High Power Analog Current Controller 72W/CH 3A OPT-APA3024-2

Product Features

◆ Controller Voltage: 100-120V/200-240V AC 50/60Hz

◆ Controller Current is 3A.

◆ Controller Output Power: 72W/CH

◆ Hi-Pot Test: 1500V AC 1min

◆ The APA3024 analog current controller has 2 channels to connect light source.

◆ Auto sensing of light rated current: for 800mA - 3A light

◆ Insulation is 500VDC.

◆ Intensity Control: stepless

◆ Standby Power Consumption is no more than 4.7 Watt.

◆ The Dimensions(L*W*H) of housing: 136mm*270.5mm*104.5mm

◆ Its Operating Temperature ranges from -5℃ to 50℃.

Model Meaning

OPT-APA3024-2

OPT: Brand name

APA: High Power Analog Current Controller

30: Max. output current: 3A

24: Max. output voltage: 24V

2: Channels

APA3024 High Power 72W/CH 3A Analog Ac Current Controller

Specifications

Product Name	High Power Analog Current Controller
Model	OPT-APA3024-2
Input Voltage	100-120V/200-240V AC 50/60Hz
Current	3A
Illumination Mode	Continuous and strobe
Auto Sensing Of Light Rated Current	For 800mA - 3A light
Intensity Control	Stepless Control
Trigger	By switch
Response Time	no more than 200μs
Response Frequency	no more than 1KHz
Channels	2
Output Power	72W/CH
Hi-Pot Test	1500V AC 1min
Insulation	500VDC
Standby Power Consumption	≤4.7W
Dimensions(LWH)	136mm270.5mm104.5mm
Operating Temperature	-5℃~50℃
Weight(kg)	1.6

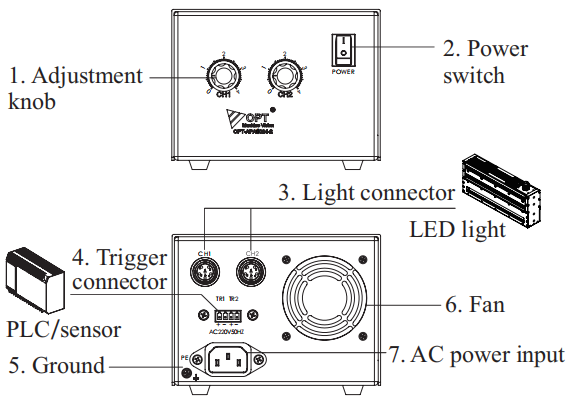

Device Overview

APA3024 High Power 72W/CH 3A Analog Ac Current Controller

Product Details

APA3024 High Power 72W/CH 3A Analog Ac Current Controller

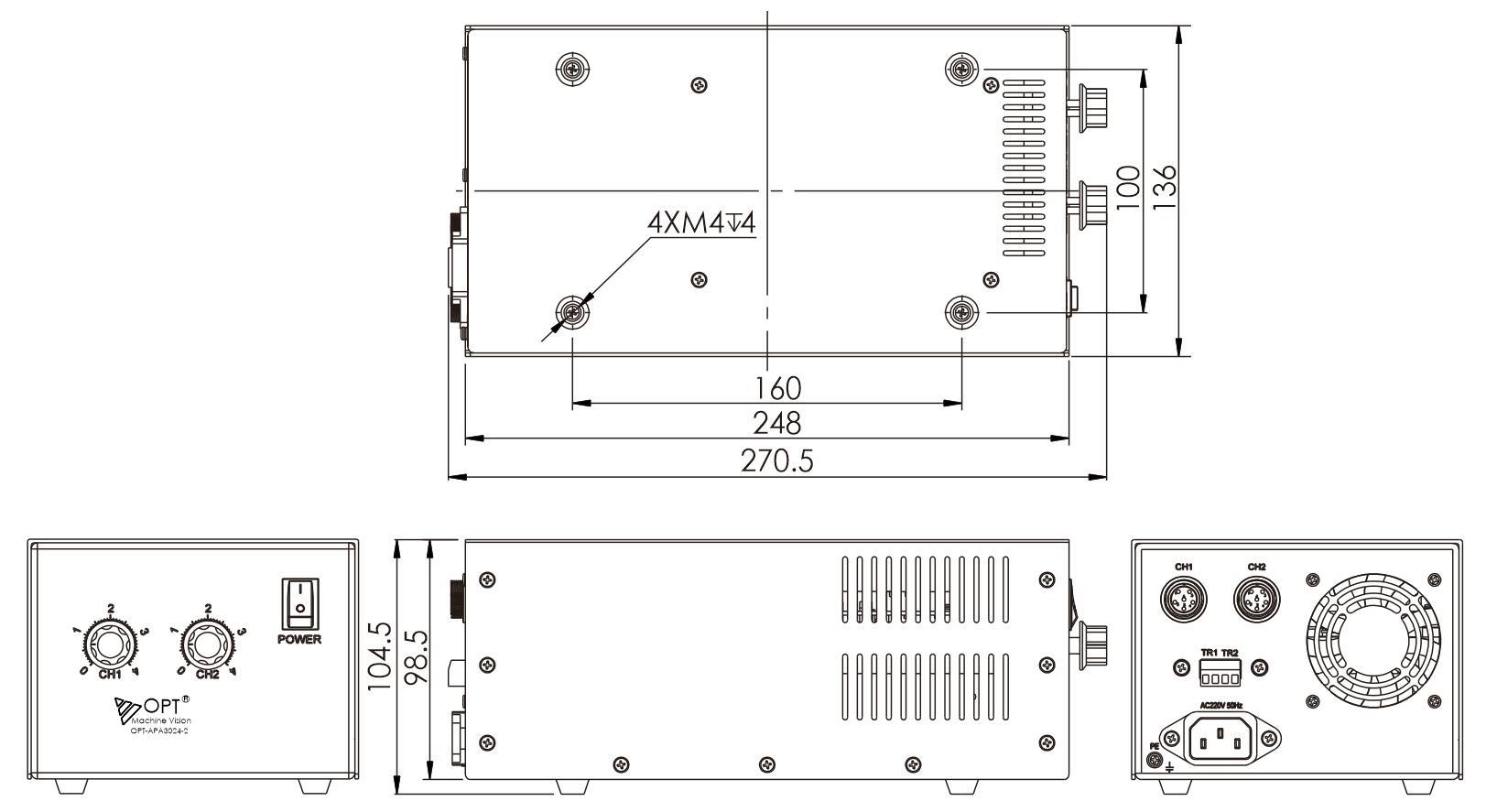

Dimensions (mm)

OPT-APA3024-2
