100~240VAC 50/60Hz 2A 24W/CH Machine Vision Hardware Digital Current Controller

OPT Machine Vision Tech Co., Ltd.
Contact Now

100~240VAC 50/60Hz 2A 24W/CH Machine Vision Hardware Digital Current Controller

Brand Name : OPT

Model Number : OPT-DPA2012E

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Product name : Digital Current Controller

Voltage input : 100~240V AC 50/60Hz

Auto sensing of light rated current : For 10mA-2A 12V LED light

Manual setting for max. output current : 10mA~2A

Intensity control : 256 levels

Output power : 24W/CH

Dimensions(mm) (L*W*H) : 91*132*170mm

Operating Temperature : -5℃~50℃

Contact Now

Machine Vision Controller Digital Current Controller 100~240V AC 50/60Hz 2A Current OPT-DPA2012E



Product Features

◆ Programmable trigger: Maximum of 32 programmable steps and intensity, pulse width and trigger source can be defined in each step.

◆ Autosense TM technology

◆ ≤20μs trigger response time

◆ Up to 20kHz trigger response frequency

◆ Simultaneous communication of multiple channels

◆ Manual setting for max. output current

◆ 256-level light intensity control

◆ External trigger: External trigger input(e.g. camera trigger signal) for related light strobes and other sequences.(Strobe mode can greatly improve light source life expectancy.)

◆ Trigger pulse width setting

◆ RS232 interface

◆ 100Mb Ethernet interface

◆ Temperature controlled fan

◆ Convenient mounting with screws or on DIN rails



Specifications

Model OPT-DPA2012E-4
Voltage 100~240V AC 50/60Hz
Current 2A
Auto Sensing Of Light Rated Current For 10mA-2A 12V LED light
Manual Setting For Max. Output Current 10mA~2A
Intensity Control 256 levels
Protection No
Trigger Level
General Trigger Mode 256 intensity levels settable
Normal Trigger Time Unit 1μs/ 10μs/1ms/100ms
Normal Trigger Pulse Width 1μs~30s
High-Intensity Trigger Mode 2A output per channel
High Intensity Trigger Pulse Width 0.01~5.00ms
Programmable Trigger Yes
Response Time ≤20μs
Response Frequency ≤20KHz
Fan Control Via temperature
Channels 4
Output Power 24W/CH
Hi-Pot Test 1500V AC 1Min
Insulation 500VDC
Standby Power Consumption 5W
Dimensions(L*W*H) 91*132*170mm
Operating Temperature -5℃~50℃
Weight(kg) 0.84

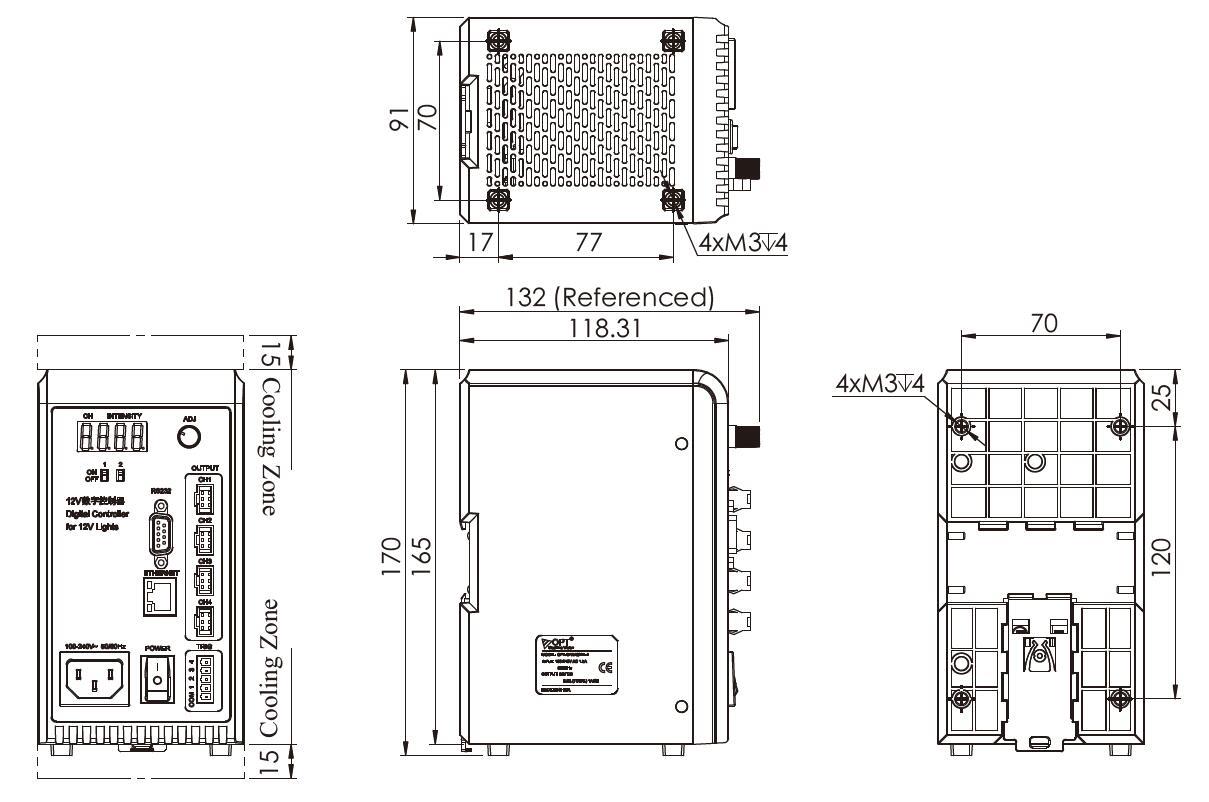

Dimensions (mm)
OPT-DPA2012E-4
                         100~240VAC 50/60Hz 2A 24W/CH Machine Vision Hardware Digital Current Controller



Device Overview



                                100~240VAC 50/60Hz 2A 24W/CH Machine Vision Hardware Digital Current Controller
