Mag. 0.438x MTF30 130lp/Mm F6.0 Machine Vision Zoom Lens 0.31kg

Brand Name : OPT

Model Number : OPT-TS0438-73

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Model : OPT-TS0438-73

WD : 73±1

Mag. (x) : 0.438

Aperture (F#) : F6.0

DOF (mm) : 2.58mm

MTF30 (lp/mm) : 130lp/mm

Weight (kg) : 0.31kg

Feature : Compatible with 4/3"-59mm F/M-Mount cameras

Contact Now

TS Series Large FOV Bi-telecentric Lenses F6.0 Mag. 0.438x MTF30 130lp/mm 0.31kg OPT-TS0438-73

Product Features

◆ The F/# aperture is 6.0.

◆ The OPT-TS0438-73 working distance(mm) is 73±1mm.

◆ OPT-TS0438-73 long WD machine vision telecentric lenses magnification is 0.438x.

◆ Image circle Ø (mm) of OPT-TS0438-73 is 11.4mm.

◆ The weight(kg) of OPT-TS0438-73 long WD machine vision telecentric lens is 0.31kg.

◆ Maximum distortion(%) of OPT-TS0438-73 is 0.1%.

◆ OPT-TS0438-73 is able to be up to 240mm FOV and compatible with 1/2.5" - 1" C-Mount cameras or 4/3"- 59mm F/M-Mount cameras,with high resolution, bi-telecentric design. It is with low distortion, large aperture, high telecentricity and large depth of field (DOF) 42 standard models and more than 100 customized designs.

◆ The DOF(mm) of OPT-TS0438-73: 2.58mm.

◆ MTF30(lp/mm) of OPT-TS0438-73 is 130lp/mm.

◆ FOV (mm×mm) of 1/2.5″ | 5.8×4.3: 13.2×9.8; FOV (mm×mm) of 1/1.8″ | 7.2×5.3: 16.4×12.3; FOV (mm×mm) of 2/3″ | 8.8×6.6: 20.1×15.1

Model Explanation

OPT-TS0438-73

OPT: Brand name

TS: TS series large FOV bi-telecentric lenses

0438: Magnification: 0.438x

73: Working distance: 73mm

Specifications

Product Name	TS Series Large FOV Bi-telecentric Lenses
Model	OPT-TS0438-73
F/# aperture	6.0
Working distance	73±1mm
Mag. (x)	0.438x
Image circle Ø (mm)	11.4
Maximum distortion(%)	0.1
Weight(kg)	0.31kg
DOF (mm)	2.58mm
MTF30(lp/mm)	130lp/mm
FOV (mm×mm) of 1/3″ \| 4.8×3.6	13.2×9.8
FOV (mm×mm) of 1/1.8″ \| 7.2×5.3	16.4×12.3
FOV (mm×mm) of 2/3″ \| 8.8×6.6	20.1×15.1

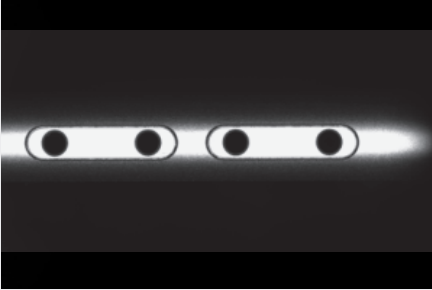

Application Examples:

Mag. 0.438x MTF30 130lp/Mm F6.0 Machine Vision Zoom Lens 0.31kg

Inner dimension measurement for mobile phone back cover

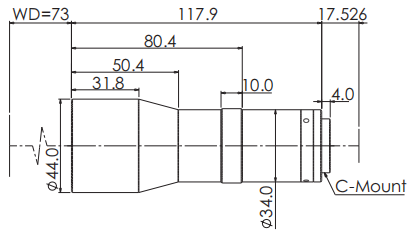

Dimensions (mm)

OPT-TS0438-73

Mag. 0.438x MTF30 130lp/Mm F6.0 Machine Vision Zoom Lens 0.31kg
