24V/31W RGB Machine Vision LED Lighting AOI Lights High Uniformity Multi-Colored

Brand Name : OPT

Model Number : OPT-RIA200-RGB

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Product name : Machine Vision LED Lighting AOI Light

Light source : LED

Color : RGB

Output : 24V/31W

Channels : 3

Housing Size（Diameter） : 200

Recommended Controller : OPT-DPA2024E

Feature : High Uniformity

Contact Now

24V/31W RGB Machine Vision LED Lighting AOI Lights high uniformity multi-colored OPT-RIA Series 3 channels

Product Features

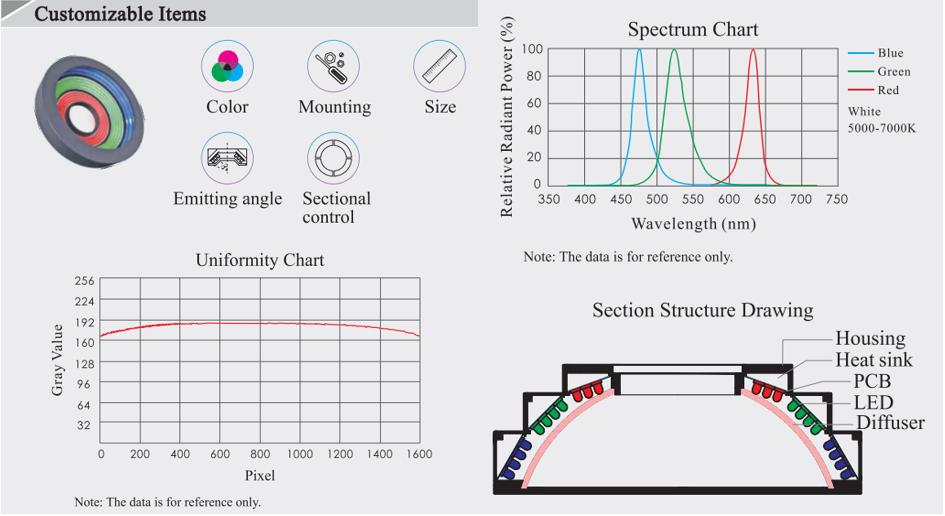

◆ The RGB machine vision LED lighting AOI lights have special diffuser which is designed to improve the uniformity.

◆ Highlight object 3D information by multi-colored (Red/Green/Blue) illumination from various angles

◆ OPT-RIA200-RGB AOI lights have 3 channels and 3 colors; the output of light source in red color is 24V/31W; the output of green light source is 24V/31W; the output of blue light source is 24V/31W.

◆ The housing size in diameter of the AOI light source OPT-RIA200-RGB is 200mm.

◆ The light source OPT-RIA200-RGB can be used to many applications in automation industry such as soldering inspection of PCB, inspection of round objects and inspection of objects with varying heights.

◆ OPT-RIA200-RGB AOI lights can be customized in many ways such as color, mounting, size,emitting angle, sectional control.

Application Cases

◆ Soldering inspection of PCB

◆ Inspection of round objects

◆ Inspection of objects with varying heights

Specifications

Model	OPT-RIA200-RGB
Color	RGB
Output	24V/31W
Channels	3
Housing Size(Diameter)	200mm
Recommended Controller	OPT-DPA2024E

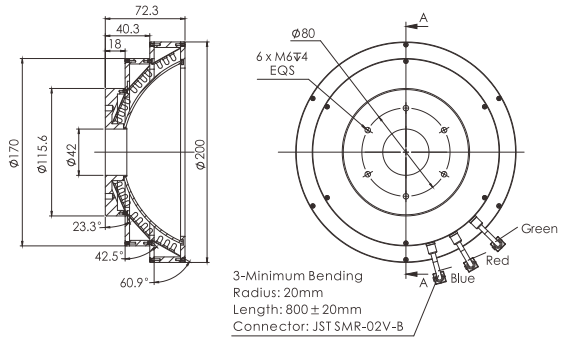

Dimensions (mm)

OPT-RIA200-RGB

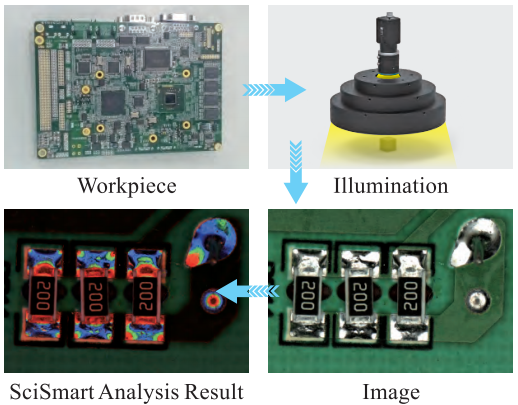

Applications: Soldering inspection
