5MP F1.4~F16 25mm Fixed Focal Length Lenses For Machine Vision System 0.08kg

OPT Machine Vision Tech Co., Ltd.
Contact Now

5MP F1.4~F16 25mm Fixed Focal Length Lenses For Machine Vision System 0.08kg

Brand Name : OPT

Model Number : OPT-C2514-5M

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Model : OPT-C2514-5M

Focal Length : 25mm

F/# Aperture : F1.4~F16

Working Distance(mm) : 200~∞

Distortion : <0.3%

Sensor format : 1/3″| 1/2.5″ | 1/1.8″ | 2/3″

Back focal length (mm) : 11.54mm

Weight (kg) : 0.08kg

Contact Now

5MP Fixed Focal Length Lenses F1.4~F16 WD 200-∞ Focal Length 25mm 0.08kg OPT-C2514-5M



Product Features
◆ The F/# aperture is F1.4~F16
◆ The 5MP fixed focal length lenses with features of high resolution and low distortion
◆ Can be matched with 5MP industrial cameras of no less than 3.45μm pixel size and max. 2/3" sensor; up to 140 lp/mm full FOV resolution.(OPT-C0420-5M/OPT-C0620-5M: Compatible with 3MP cameras of max. 1/2" sensor)
◆ Total distortion < 0.7%, min. distortion as low as 0.02%(OPT-C0420-5M & OPT-C0620-5M are not included.).
◆ The OPT-C2514-5M working distance is 200mm-∞.
◆ Filter thread is M30.5*P0.5.
◆ OPT-C2514-5M fixed focal length lenses focal length is 25mm.
◆ Back focal length (mm): back focal length is 11.54mm.
◆ Weight of OPT-C2514-5M fixed focal length lens is 0.08kg.

◆ The sensor format of OPT-C2514-5M is 1/3″ | 1/2.5″ | 1/1.8″ | 2/3″.

◆ The distortion is less than 0.3%.

◆ FOV angle (H×V×D) is 10.9° | 13.1° | 16.4° | 19.4°, 8.3° | 9.9° | 12.4° | 16.2°, 13.6° | 16.4° | 20.4° | 25.1°.


Model Explanation

OPT-C2514-5M
OPT: Brand name
C: C-Mount
25: Focal length: 25mm
14: F#: 1.4
5M: 5M pixel

Specifications
Product Name 5MP Fixed Focal Length Lenses
Model
OPT-C2514-5M
Focal Length 25mm
Aperture range F1.4~F16
Working Distance(mm) 200-∞
Filter thread(mm)
M30.5*P0.5
Distortion(%)

Less than 0.3%

Back focal length (mm)

11.54mm

Weight(kg) 0.08kg
Sensor format
1/3″ | 1/2.5″ | 1/1.8″ | 2/3″
FOV angle
(H×V×D)

10.9° | 13.1° | 16.4° | 19.4°

8.3° | 9.9° | 12.4° | 16.2°

13.6° | 16.4° | 20.4° | 25.1°



Resolution Comparison

                           5MP F1.4~F16 25mm Fixed Focal Length Lenses For Machine Vision System 0.08kg
                               Image taken via 5MP Fixed Focal Length Lens                                Image taken via other lens


Application Examples:

                                                 5MP F1.4~F16 25mm Fixed Focal Length Lenses For Machine Vision System 0.08kg

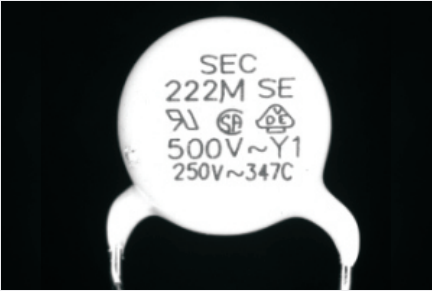

                                                                                                    OCR for capacitor

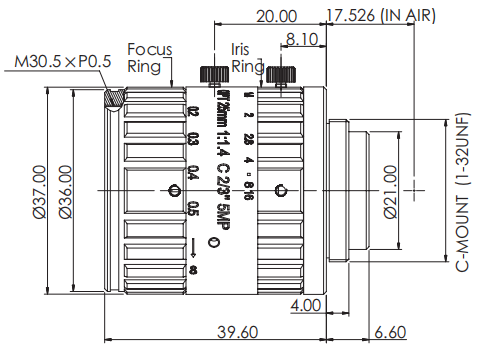

                                                                                                                                                                                                           Dimensions (mm)
 OPT-C2514-5M

                                           5MP F1.4~F16 25mm Fixed Focal Length Lenses For Machine Vision System 0.08kg
