F5.4 Mag. 0.178x Machine Vision Telecentric Lens 145lp/Mm 0.83kg

Brand Name : OPT

Model Number : OPT-TS0178-189-AL

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Model : OPT-TS0178-189-AL

Mag. (x) : 0.178

Aperture (F#) : F5.4

DOF (mm) : 14.06mm

MTF30 (lp/mm) : 145lp/mm

Weight (kg) : 0.83

Image circle Ø (mm) Image circle Ø (mm) : 11.4mm

Distortion (% max) : 0.1

Contact Now

TS Series Large FOV Bi-telecentric Lenses F5.4 Mag. 0.178x MTF30 145lp/mm 0.83kg OPT-TS0178-189-AL

Product Features

◆ The F/# aperture is 5.4.

◆ The OPT-TS0178-189-AL working distance(mm) is 189±3mm.

◆ OPT-TS0178-189-AL long WD machine vision telecentric lenses magnification is 0.178x.

◆ Image circle Ø (mm) of OPT-TS0178-189-AL is 11.4mm.

◆ The weight(kg) of OPT-TS0178-189-AL long WD machine vision telecentric lens is 0.83kg.

◆ Maximum distortion(%) of OPT-TS0178-189-AL is 0.1%.

◆ The DOF(mm) of OPT-TS0178-189-AL: 14.06mm.

◆ MTF30(lp/mm) of OPT-TS0178-189-AL is 145lp/mm.

◆ FOV (mm×mm) of 1/2.5″ | 5.8×4.3: 32.6×24.2; FOV (mm×mm) of 1/2.5″ | 5.8×4.3: 40.5×29.8; FOV (mm×mm) of 1/2.5″ | 5.8×4.3: 49.4×37.1

Model Explanation

OPT-TS0178-189-AL

OPT: Brand name

TS:TS series large FOV bi-telecentric lenses

0178: Magnification: 0.178x

189: Working distance: 189mm

AL: Adjustable back focal length

Specifications

Product Name	TS Series Large FOV Bi-telecentric Lenses
Model	OPT-TS0178-189-AL
F/# aperture	5.4
Mag. (x)	0.178x
Image circle Ø (mm)	11.4
Maximum distortion(%)	0.1
Weight(kg)	0.83kg
DOF (mm)	14.06mm
MTF30(lp/mm)	145lp/mm
FOV (mm×mm) of 1/3″ \| 4.8×3.6	32.6×24.2
FOV (mm×mm) of 1/2.5″ \| 5.8×4.3	40.5×29.8
FOV (mm×mm) of 1/2.5″ \| 5.8×4.3	49.4×37.1

Application Examples:

F5.4 Mag. 0.178x Machine Vision Telecentric Lens 145lp/Mm 0.83kg

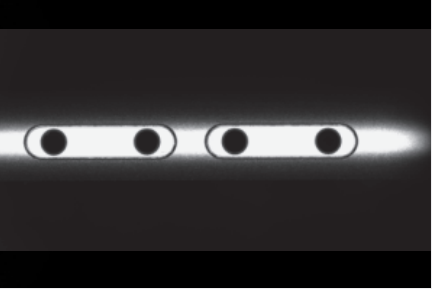

Inner dimension gauging for back cover of mobile phone

Dimensions (mm)

OPT-TS0178-189-AL

F5.4 Mag. 0.178x Machine Vision Telecentric Lens 145lp/Mm 0.83kg
