2MP 0.13kg 100mm Industrial Camera Lens WD 2700-∞ F2.8~F16

Brand Name : OPT

Model Number : OPT-C10028-2M

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Model : OPT-C10028-2M

Focal Length : 100mm

Aperture : F2.8~F16

Working Distance(mm) : 2700-∞

Distortion : <0.05%

Filter thread(mm) : M37.5*P0.5

Back focal length (mm) : 19.95mm

Weight (kg) : 0.13

Contact Now

2MP Fixed Focal Length Lenses WD 2700-∞ Focal Length 100mm 0.13kg F2.8~F16 OPT-C10028-2M

Product Features

◆ The F/# aperture is F2.8~F16.

◆ With high uniform performance.

◆ 2MP Fixed Focal Length Lenses have features of compact housing, light weight and good stability.

◆ The OPT-C10028-2M working distance(mm) is 2700-∞.

◆ OPT-C10028-2M fixed focal length lenses focal length is 100mm.

◆ Filter thread of OPT-C10028-2M: M37.5*P0.5.

◆ The weight(kg) of OPT-C10028-2M fixed focal length lens is 0.13.

◆ Back focal length (mm): 19.95mm.

◆ The sensor format of OPT-C10028-2M: 1/3″ | 1/2.5″ | 1/1.8″ | 2/3″.

◆ FOV angle (H×V×D) is 2.0° | 2.4° | 3.0° | 3.7°, 1.5° | 1.8° | 2.3° | 2.8°, 2.5° | 3.0° | 3.7° | 4.6°.

◆ The distortion is less than 0.05%.

Model Explanation

OPT-C10028-2M

OPT: Brand name

C: C-Mount

100: Focal length: 100mm

28: F#: 2.8

2M: 2M pixel

Specifications

Product Name	2MP Fixed Focal Length Lenses
Model	OPT-C10028-2M
Focal Length	100mm
Aperture range	F2.8~F16
Working Distance(mm)	2700mm-∞
Distortion(%)	Less than 0.05%
Back focal length (mm)	19.95mm
Weight(kg)	0.13
Sensor format	1/3″ \| 1/2.5″ \| 1/1.8″ \| 2/3″
FOV angle (H×V×D)	2.0° \| 2.4° \| 3.0° \| 3.7° 1.5° \| 1.8° \| 2.3° \| 2.8° 2.5° \| 3.0° \| 3.7° \| 4.6°

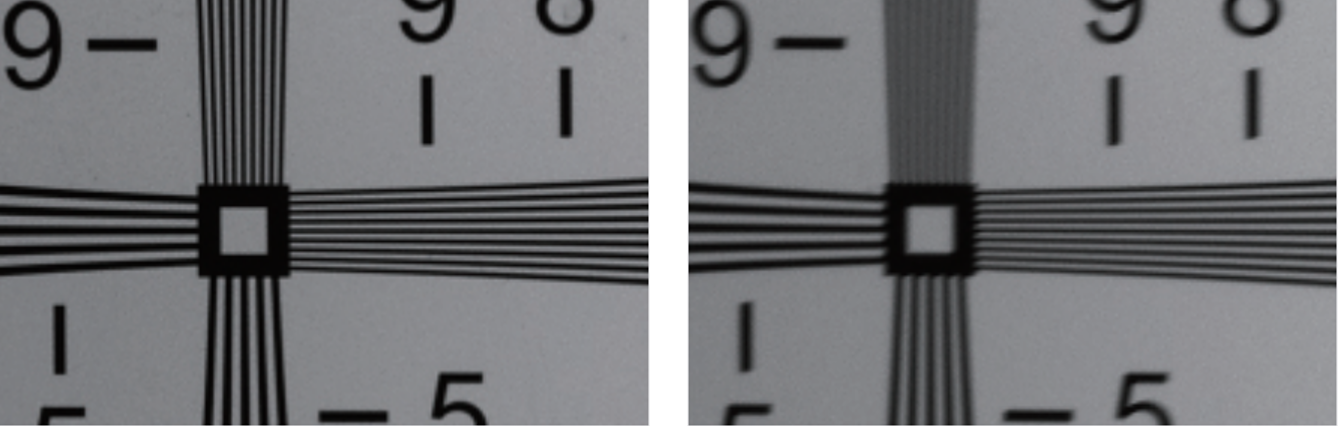

Resolution Comparison

2MP 0.13kg 100mm Industrial Camera Lens WD 2700-∞ F2.8~F16

Image taken via 2MP Fixed Focal Length Lens Image taken via other lens

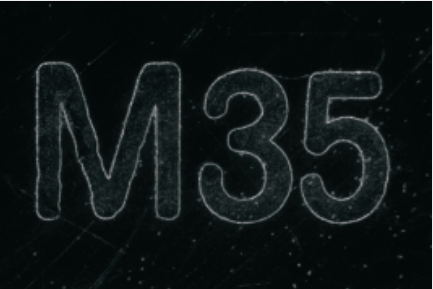

Application Examples:

OCR of plastic parts

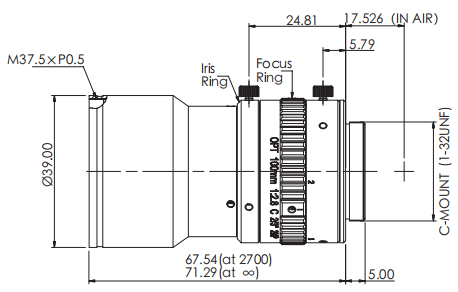

Dimensions (mm)

OPT-C10028-2M

2MP 0.13kg 100mm Industrial Camera Lens WD 2700-∞ F2.8~F16

OPT has quickly developed to become a leader in the machine vision industry. The products and solutions of OPT are reaching more than 20 countries and regions. Many of our customers are Fortune 500 companies. Our mail products: vision system, light sources, industrial cameras, lenses, 3D laser sensors, barcode readers, etc.
