75mm 2MP OPT Fixed Focal Length Lenses WD 700-∞ 0.16kg F2.8~F32

Brand Name : OPT

Model Number : OPT-C7528-2M

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : 7 work days at the soonest

Packaging Details : Craft Box

Model : OPT-C7528-2M

Focal Length : 75mm

Aperture : F2.8~F32

Working Distance(mm) : 700-∞

Distortion : <0.02%

Filter thread(mm) : M30.5*P0.5

Back focal length (mm) : 18mm

Weight (kg) : 0.16

Contact Now

2MP Fixed Focal Length Lenses WD 700-∞ Focal Length 75mm 0.16kg F2.8~F32 OPT-C7528-2M

Product Features

◆ The F/# aperture is F2.8~F32.

◆ It is of high uniform performance.

◆ compact housing, light weight and good stability.

◆ The OPT-C7528-2M working distance(mm) is 700-∞.

◆ OPT-C7528-2M fixed focal length lenses focal length is 75mm.

◆ Filter thread of OPT-C7528-2M: M30.5*P0.5.

◆ The weight(kg) of OPT-C7528-2M fixed focal length lens is 0.16.

◆ Back focal length (mm): 18mm.

◆ The sensor format of OPT-C7528-2M: 1/3″ | 1/2.5″ | 1/1.8″ | 2/3″.

◆ FOV angle (H×V×D) is 3.2° | 3.9° | 4.7° | 5.7°, 2.4° | 2.9° | 3.6° | 4.9°, 3.9° | 4.8° | 5.9° | 7.5°.

◆ The distortion is less than 0.02%.

Model Explanation

OPT-C7528-2M

OPT: Brand name

C: C-Mount

75: Focal length: 75mm

28: F#: 2.8

2M: 2M pixel

Specifications

Product Name	2MP Fixed Focal Length Lenses
Model	OPT-C7528-2M
Focal Length	75mm
Aperture range	F2.8~F32
Working Distance(mm)	700mm-∞
Distortion(%)	Less than 0.02%
Back focal length (mm)	18mm
Weight(kg)	0.16
Sensor format	1/3″ \| 1/2.5″ \| 1/1.8″ \| 2/3″
FOV angle (H×V×D)	3.2° \| 3.9° \| 4.7° \| 5.7° 2.4° \| 2.9° \| 3.6° \| 4.9° 3.9° \| 4.8° \| 5.9° \| 7.5°

Resolution Comparison

75mm 2MP OPT Fixed Focal Length Lenses WD 700-∞ 0.16kg F2.8~F32

Image taken via 2MP Fixed Focal Length Lens Image taken via other lens

Application Examples:

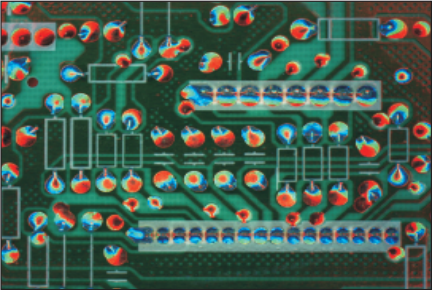

Detecting of PCB soldering
Dimensions (mm)

OPT-C7528-2M

75mm 2MP OPT Fixed Focal Length Lenses WD 700-∞ 0.16kg F2.8~F32

OPT lenses include 2MP/5MP/10MP/29MP and zoom lenses, Cobra series fixed focal length lenses, high accuracy line scan lenses, high resolution telecentric lenses, etc.

OPT industrial cameras can be mainly divided into area scan cameras of global shutter and rolling shutter with resolution stretching from 0.5MP to 15000MP, and line scan cameras which are compatible with GigE Vision protocol, USB3.0 Vision protocol, CameraLink protocol, CoaXPress protocol and GenlCam standard with resolution ranging from 2K to 16K.
